Hydraulic oil press
  • Hydraulic oil press
  • Hydraulic oil press
  • Hydraulic oil press

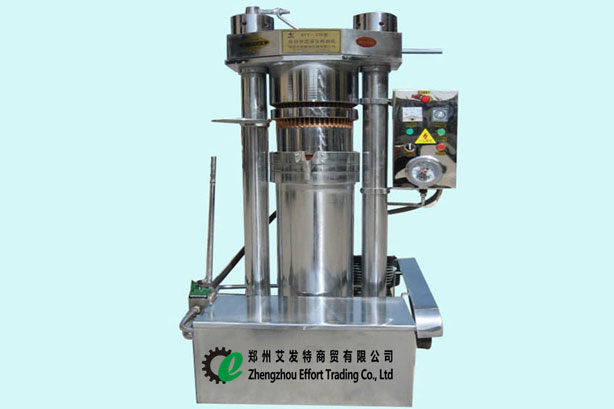

Hydraulic oil press

Description:
The automatic hydraulic oil press made by us has many advantages: easy to operate, high oil press rate, rare to replace wearing parts, so this oil press is the most advanced equipment which can replace of the manual operation of the sesame oil. This machine can press at least 2 to 7 kilograms per batch, the time is about 4 to 6 minutes, so it is very suitable for the citizens who live in the big and medium cities because they want get the high quality of oil of spending money.

    • Application scope:
      The automatic hydraulic oil press made by us has many advantages: easy to operate, high oil press rate, rare to replace wearing parts, so this oil press is the most advanced equipment which can replace of the manual operation of the sesame oil. This machine can press at least 2 to 7 kilograms per batch, the time is about 4 to 6 minutes, so it is very suitable for the citizens who live in the big and medium cities because they want get the high quality of oil of spending money. It is also can be used in the countryside, because the speed of oil pressing is fast so people can bring their oil raw material to press oil. In this way, they can be assured of the purity of their oil.
      This machine can be used for process many kinds of raw material: sesame, walnut kernel, peanut, pine seed (better to get rid of the shell), almond, spricot kernel, perilla, cocoa bean, linseed and other oil crops.

      Structure:
      This machine mainly includes three parts:
      1.Main engine 2. Hydraulic system 3.electrical system
      The following is the specific introduction:
      1.main engine:
      Main engine includes base、upright、top plate、oil drip pan、nut and etc which is one of the main parts. When the oil material is put into the assembly of the press boring,then it being driven up by the oil cylinder piston ,oil will be outflow from the gap of press boring,and then pass the oil drip pan to the drum for oil storage.

    1



    Models



    6YZ-180 6YZ-230 6YZ-320
    2 Processing capacity( Kg/h) 30-60 90-150 160-240
    3 External Dimension(mm) 800*650*1100 900*750*1400 1100*1000*1500
    4 Weight of machine 530kg 880kg 1320kg
    5 Nominal pressure 1600KN 2200KN 3000KN
    6 Max pressure for working 55Mpa 55Mpa 55Mpa
    7 Power of electricity heating circle 1KW 1KW 2KW
    8 Controlling temperature of heating circle 70-100℃ 70-100℃ 70-100℃
    9 Sesame weight/time 1-3kg 2-7kg 5-15kg
    10 Motor types and power (kw) Y901-4-1.5kw Y901-4-1.5kw Y901-4-1.5kw
    11 Stroke(mm) 200 350 500
