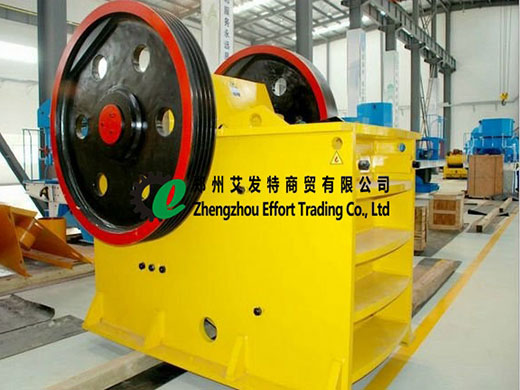

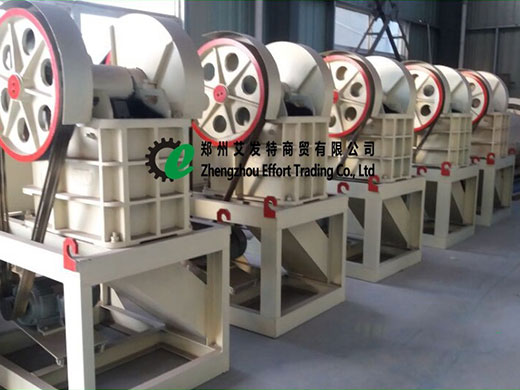

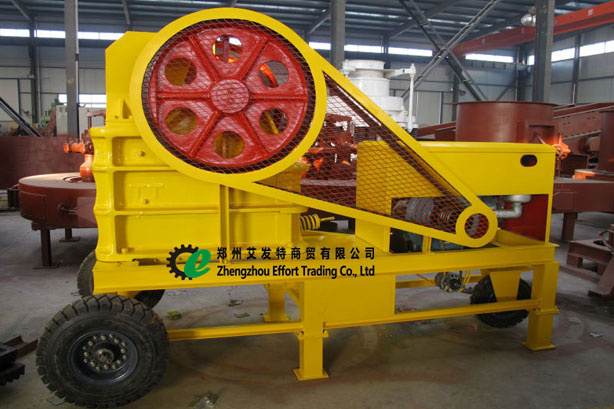

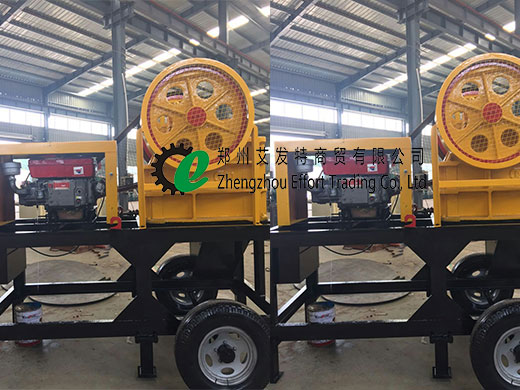

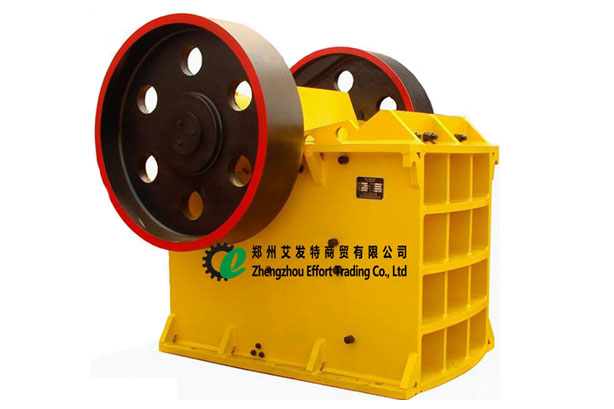

Jaw crusher

Description:
Jaw crusher is made up by the dynamic and static jaw plates composed of two crushing chamber to simulate the movement of animals to complete two jaw crusher crushing materials, special equipment for gravel.

    • Jaw crusher Application:
      1. Jaw crusher is mainly used for metallurgy, mining, chemical, cement, construction, refractory materials and ceramic industries as well as broken and finely various kinds of hard with rocks and ores.
      2. This series crusher gravel crushing equipment best suited to the compressive strength is not higher than 300MPa (M Pa) of various hard and soft ore was broken material shall be not greater than the largest block of technical parameters the law.

      Working Principle of jaw crusher:
      Jaw crusher (alligator crusher)work for the squeeze-type dynamic song, the working principle is: motor drive belt and pulley, through the eccentric shaft to move up and down movement jaw, when moving jaw rise cubits board with move between the jaw Angle change, so as to promote dynamic jaw plate to fixed jaw plate close to, and at the same time the material being crushed or broken split, to break (crusher price) purpose; When the jaws move downward, cubits plate and dynamic jaw Angle decrescent, move jaw plate in bars, spring, the function of leave fixed jaw plate, this time the already broken material from crushing cavity from your mouth. With the motor turns continuously and broken motor jaw as the periodic motion and discharge material crushed, and realize the batch production.

    Model Feed opening size
    (mm)
    Max Feed
    size
    (mm)
    Adjusting
    range of discharge opening
    (mm)
    Capacity
    (t/h)
    Rotation speed of eccentric shaft
    (r/min)
    Motor power
    (kw)
    Total weight
    (t)
    Dimensions
    (L*W*H)
    (mm)
    PE-150×250 150×250 125 10-40 1-3 250 5.5 0.8 720×660×850
    PE-200×300 200×300 180 15-50 2-6 260 7.5 1.2 910×750×990
    PE-200×350 200×350 180 18-70 3-10 260 11 1.5 1000×870×990
    PE-250×400 250×400 210 20-60 5-20 300 15 2.8 1300×1090×1270
    PE-400×600 400×600 340 40-100 16-60 275 30 7 1730×1730×1630
    PE-500×750 500×750 425 50-100 40-110 275 55 12 1980×2080×1870
    PE-600×750 600×750 500 150-200 80-240 275 55 15.8 2070×2000×1920
    PE-600×900II 600×900 500 65-160 50-180 250 55 17 2190×2206×2300
    PE-750×1060 750×1060 630 80-140 110-320 250 110 29 2660×2430×2800
    PE-800×1060 800×1060 640 130-190 130-330 250 110 29.8 2710×2430×2800
    PE-830×1060 830×1060 650 160-220 150-336 250 110 30.7 2740×2430×2800
    PE-870×1060 870×1060 660 200-260 190-336 250 110 31.5 2810×2430×2800
    PE-900×1060 900×1060 685 230-290 230-390 250 110 33 2870×2420×2940
    PE-900×1200 900×1200 750 95-165 220-450 200 110 52 3380×2870×3330
    PE-1000×1200 1000×1200 850 195-265 315-500 200 110 55 3480×2876×3330
    PE-1200×1500 1200×1500 1020 150-350 400-800 180 160 100.9 4200×3300×3500
    PE-1500×1800 1500×1800 1200 220-350 500-1000 180 280 122 5160×3660×4248
    PE-1800×2100 1800×2100 1500 300-400 600-1200 160 400 150.6 6210×4013×4716
    PEX-150×750 150×750 120 18-48 8-25 320 15 3.8 1200×1530×1060
    PEX-250×750 250×750 210 25-60 13-35 330 30 5.5 1380×1750×1540
    PEX-250×1000 250×1000 210 25-60 16-52 330 30 7 1560×1950×1390
    PEX-250×1200 250×1200 210 25-60 20-61 330 37 9.7 2140×1660×1500
    PEX-300×1300 300×1300 250 20-90 16-105 300 55 15.6 2720×1950×1600
