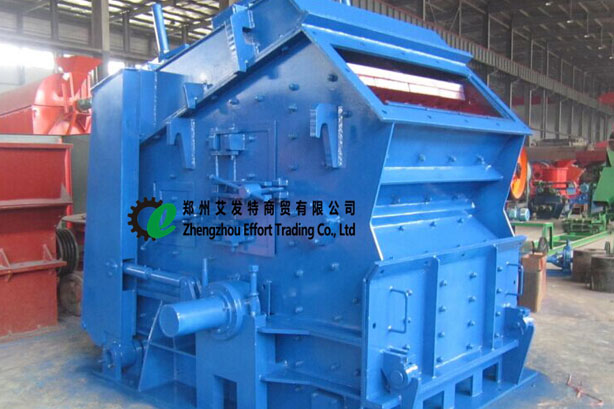

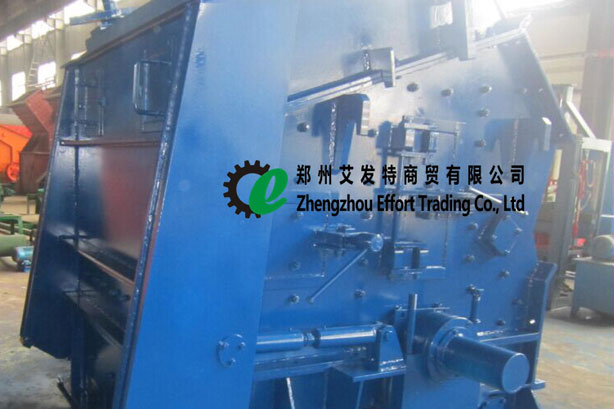

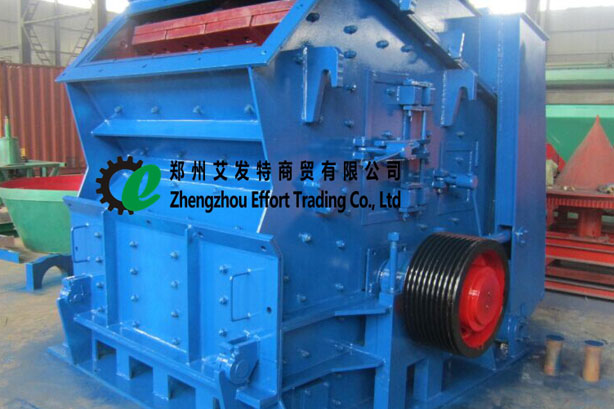

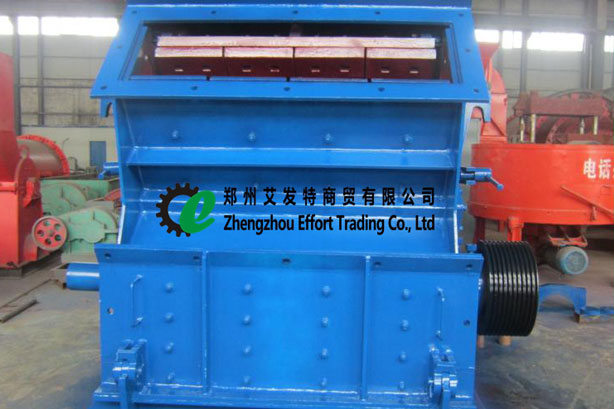

Impact crusher

Description:
Impact crusher adopts the newest manufacturing technology and unique structure design, so the discharged product is with cubic and perfect shape, no tension and crack. This crusher can crush materials with size smaller than 500mm and resisting strength less than 350MPa, such as granite, limestone, concrete aggregate, etc.

    • Impact crusher Working principle:
      When the impact crusher works, the motor drives the rotor rotate with high speed, on the rotor where installed the hammers. When the materials get into the area which the hammers effect, under the impact function of the hammer at a high speed, the materials are thrown to the impact device above the rotor continuously. And then the materials are rebounded from the impact liner to the area where the hammers effects for being recrushed. The materials from large to small all to be crushed at the impact chamber repeatedly. The process wont stop till the material are crushed to the required size and then discharged from outlet.

      Impact crusher Features:
      1.Large feed size and high crushing chamber are suitable to crush hard and big materials;
      2.Space between impact plates and hammers can be adjusted conveniently, so the shape and size of final product can be controlled;
      3.New type of abrasion-proof materials are used, so life of hammers, impact plates and lining plates is much longer;
      4.High chromium hammer and unique lining plate are suitable to crush hard stones efficiently.

    Model Specification
    (mm)
    Feeding size(mm) Max feed size(mm) Capacity
    (t/h)
    Motor power(kw) Weight(kg)
    PF-0607 644*740 320*770 100 10-20 30 10216
    PF-0807 850*700 400*730 300 15-30 30-45 11138
    PF-1008 1000*800 400*830 300 30-50 37-55 12206
    PF-1010 1010*1050 400*1080 350 50-80 55-75 13138
    PF-1210 1250*1050 400*1080 350 70-120 110-132 15200
    PF-1212 1250*1250 400*1300 350 100-150 132-160 17025
    PF-1214 1250*1400 400*1430 400 130-180 160-200 19015
    PF-1315 1320*1500 860*1520 500 160-250 180-260 24600
    PF-1320 1320*2000 860*2030 500 300-350 300-375 29800
    PF-1520 1520*2000 980*2980 700 400-500 400-480 38600
