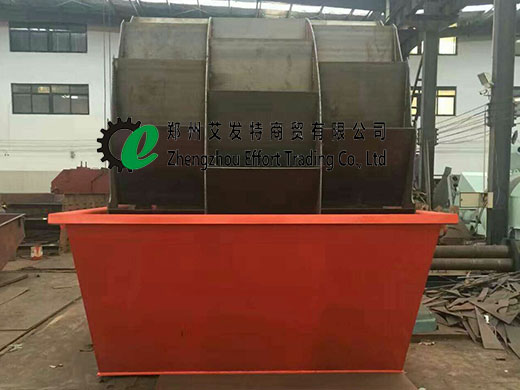

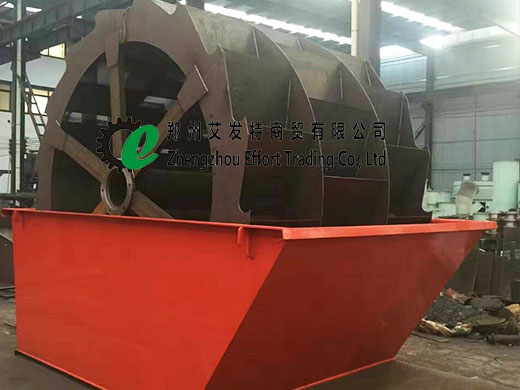

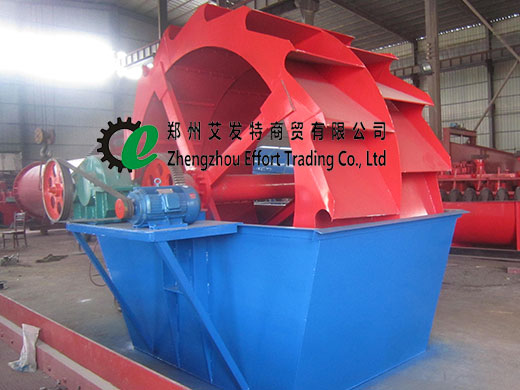

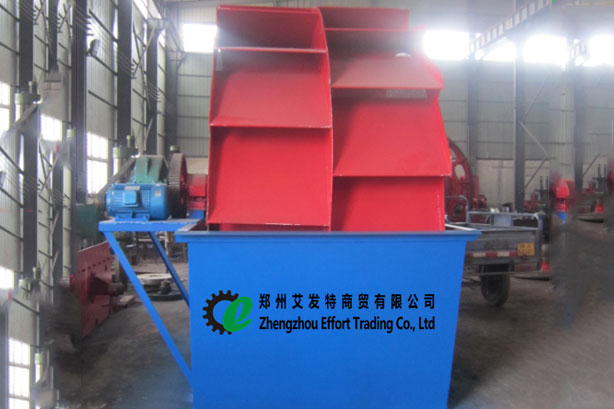

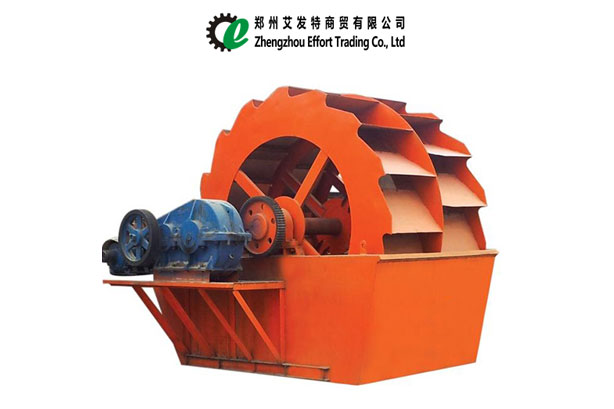

Wheel bucket sand washer
  • Wheel bucket sand washer
  • Wheel bucket sand washer
  • Wheel bucket sand washer
  • Wheel bucket sand washer

Wheel bucket sand washer

Description:
The XSD Series High-efficient Sand Washing Machine, which is used for washing away the stone powder and impurity in the sand made by the Sand Making Machine, to increase the sand quality, is an equipment to wash sand in coordination with the sand making machine. The sand washing machine is widely used in washing, grading and dehydrating quartz sand in Sand stone factories, Construction site, Glass Factory and so on.

    • Sand washer Application:
      XSD sand washing machines are mainly used in sand making factory, mining, construction, chemistry, water conservancy and hydroelectric power projects and concrete batching plant.

      Sand washer Working Principle:
      The electric motor runs slowly with the impellor after decelerated by the belt, decelerator and gears wheel. The sand and stone flow into washing launder from feeding launder, rolls with the impellor, and grinds each other. The impurity covering the sand is washing away. At the same time, add more water, the strong water flow will take away waste and some low-weight wastes from washing launder. Through the above process, the washing function is finished. The clean sand and stone is lift up by vane. When it goes up slowly, the water begins to drop through the mesh and fall back in the washing launder. On one hand, water is removed from the sand and stone; on the other hand, the water can be fully used. Finally, the sand and stone goes to the out launder from the rotary impellor to finish the washing task.

      Sand Washer Features:
      1. High efficiency, reasonable structure, high capacity and low consumption
      2. Drive Bearing device is separated by water and materials by water, which is greatly to avoid the bearing damaged due to soaking, sand and pollutants.
      3. Compared with the spiral sand washing machine, the loss of medium and fine sand and powder is minimal, and the grade and fineness modulus of washed buliding sand can meet the required standard.
      4. This machine is with long service life and low maintenance costs.

    Model  XSD2600  XSD2800  XSD3000  XSD3200  XSD3600
     Wheel bucket diameter(mm)  2600  2800  3000  3200  3600
     Rotation speed(r/min)  0.8-1.2  0.8-1.2  0.8-1.2  0.8-1.2  0.8-1.2
     Processing capacity(t/h)  20-50  30-70  50-100  80-120  120-180
     Motor power(kw)  5.5  5.5  7.5  11  15
     Total weight(kg)  3500  4600  5300  5800  6600
