Ball mill
  • Ball mill
  • Ball mill
  • Ball mill

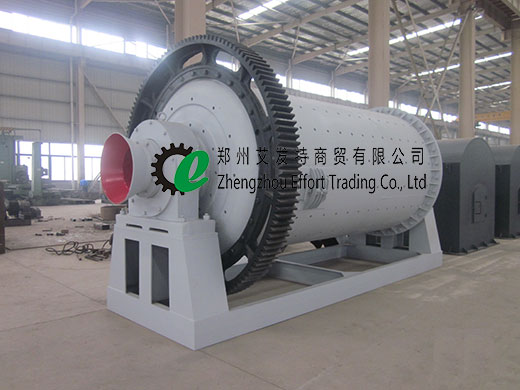

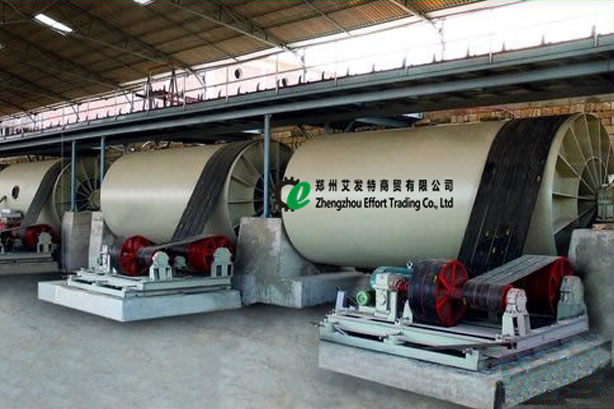

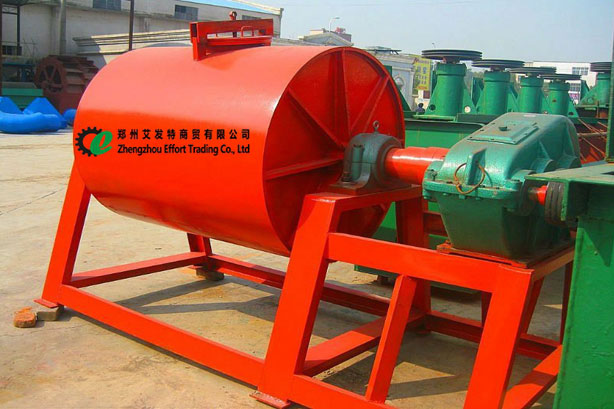

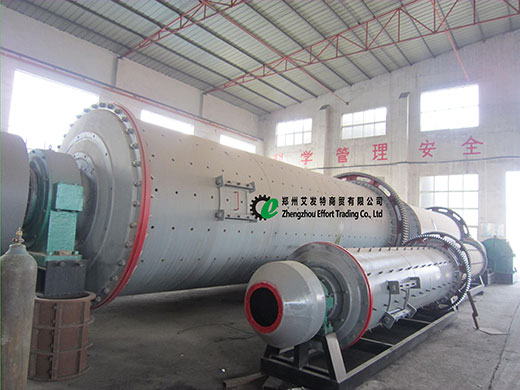

Ball mill

Description:
Ball mill is the key equipment for grinding after the crushing process, which is widely used in the manufacture industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics and can be used for the dry and wet grinding for all kinds of ores and other grind-able materials.

    • Ball mill description:
      The machine is composed by feeding part, discharging part, turning part and driving part (reducer, small driving gear, electric motor and electric control). The quill shaft adopts cast steel part and the liner is detachable. The turning gearwheel adopts casting hobbing process and the drum is equipped with wear-resistant liner, which has good wear-resistance. The machine is with stable and reliable working condition.

      Ball mill application:
      Ball mill is the key equipment for grinding after the crushing process, which is widely used in the manufacture industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics and can be used for the dry and wet grinding for all kinds of ores and other grind-able materials.

      Ball mill working principle:
      This machine is a skeleton pattern ball mill with horizontal cylindrical turning gear, drive by outer gear and two hoppers. The material goes to the first hopper after the spiraling by the quill shaft from the feeding equipment. The hopper has ladder sheathing or corrugated sheathing with steel balls inside, which will fall under the effect of centrifugal force by barrel turning to ram hard and grind material. After the kibbling in the first hopper, by monolayer partition panel, the material will enter the second hopper, which has plane scale board with steel ball inside to grind material. The powder material will be discharged from the grid plate to finish the grinding Moreover, according to different materials and discharging methods, there are dry ball mills and wet ball mills for choice.

    Model shaft rotation speed(r/min) Ball load
    (t)
    Feeding size(mm) Discharging size(mm) Capacity (t/h) Power (KW) Weight (T)
    Φ900×1800 38 1.5 ≤20 0.075 -0.89 0.65 -2 18.5 3.6
    Φ900×2100 38 1.3-1.4 ≤15 0.075 -0.83 0.7-3.5 18.5 3.9
    Φ900×3000 38 2.7 ≤20 0.075 -0.89 1.1-3.5 22 4.5
    Φ1200×2400 32 3.8 ≤25 0.0745-0.6 1.5-4.8 30 11.5
    Φ1200×2800 32 3.3-3.5 ≤25 0.0745-0.6 2-6 30 13
    Φ1200×4500 32 7 ≤25 0.074 -0.4 1.6-5.8 45 13.8
    Φ1500×3000 27 8 ≤25 0.074 -0.4 2-5 75 17
    Φ1500×3500 27 6.75-6.4 ≤25 0.075 -0.4 3-7 75 17.5
    Φ1500×4500 27 14 ≤25 0.074 -0.4 3.5-12 110 21
    Φ1500×5700 27 15 ≤25 0.074 -0.4 3.5-8 115 24.7
    Φ1830×3000 24 18 ≤25 0.074 -0.4 4-10 130 28
    Φ1800×3600 24 10.6-11.35 ≤25 0.075 -0.4 5-22 130 33.5
    Φ1830×7000 24 25 ≤25 0.074 -0.4 7.5-17 210 36
    Φ2100×3600 22 14-15.2 ≤25 0.075 -0.4 15-36 370 46.8
    Φ2200×5500 21 30 ≤25 0.074 -0.4 10-20 210 48.5
    Φ2200×6500 21 31 ≤25 0.074 -0.4 14-26 380 52.8
    Φ2200×7500 21 33 ≤25 0.074 -0.4 16-29 380 56
    Φ2400×3000 20.6 15.5-16.6 ≤25 0.075 -0.4 22-24 245 59
    Φ2400×4500 21 30 ≤25 0.074 -0.4 8.5-60 380 65
    Φ2700×3600 20.6 39 ≤25 0.074 -0.4 12-70 400 91.3
    Φ2700×4000 20.7 40 ≤25 0.074 -0.4 12-80 400 94
    Φ2700×4500 20.7 48 ≤25 0.074 -0.4 12-90 430 102
